Ventox Three Channel ECG Machine - (ECG-03)
loader-image
loader-image

Ventox Three Channel ECG Machine - (ECG-03)

₹25,483

₹30,579

17% Off

Exclusive of 12% GST

View Product Details

Free
Delivery

Hassle Free
Cancellations

7 Day Replacement
Policy

Purchase with Credit

Get Interest-free credit with easy and quick approval & hassle free payments

Share your thoughts on this product

Incorrect Prices? Missing Information? Delivery time too high?

Product Details

What is in the box

1 x Main machine, 1 x Manual, 1 x Patient cable, 4 x Limb electrode, 6 x Chest electrode, 1 x Power cable, 1 x recording paper, 1 x Paper axis, 1 x Power cord

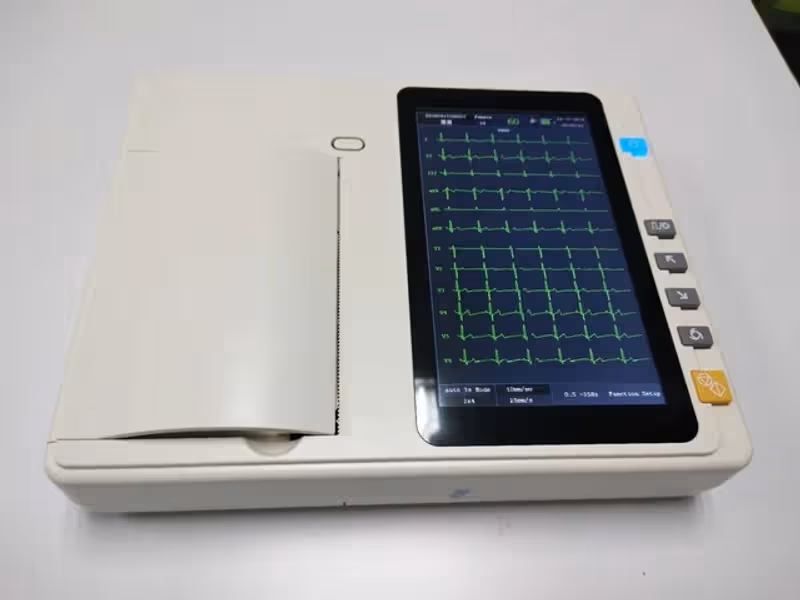

Description: The Ventox Three Channel ECG Machine (ECG-03) is a cutting-edge medical device designed for precise cardiac monitoring. Featuring a 7-inch high-resolution color touch screen, it offers simultaneous acquisition and display of 12 leads, ensuring accurate interpretation of ECG data.

Key Features:

  • 7-inch high-resolution color touch screen for intuitive operation.
  • Simultaneous acquisition and display of 12 leads for comprehensive cardiac assessment.
  • Automatic measurement and interpretation function for efficient analysis.
  • Digital filters resist baseline drift, AC, and EMG interference, ensuring clear and reliable readings.
  • Compact and lightweight design for easy portability.
  • Support for USB flash disk and micro SD card to extend memory capacity.
  • Software upgrade capability via USB/SD card.
  • Built-in rechargeable Li-ion battery for continuous operation, offering flexibility in various healthcare settings.

Benefits:

  • Accurate and reliable cardiac monitoring.
  • Efficient analysis with automatic measurement and interpretation.
  • Enhanced data storage options for comprehensive patient records.
  • Portable design enables convenient use in clinics, hospitals, and ambulatory settings.
  • Long-lasting battery ensures uninterrupted operation, even in remote locations.

Sold by VENTOX HEALTHCARE & fulfilled byMedikabazaar

Country of OriginIndia
LeadStandard 12 leads
Acquisition ModeSimultaneous 12 leads acquisition
Measurement Range-5mVpp
Input circuitFloating: Protection circuit against Defibrillator effect
Input Impedance250Ω
Input circuit currentAutomatic: 3CH×4+1R, 3CHx4, 3CHx2+2CHx3, 3CHx2+2CHx3+1R, 6CHX2
Record modeManual: 3CH, 2CH, 3CH+1R, 2CH+1R
RhythmAny lead selectable
FilterEMG Filter: 25 Hz/30 Hz/40Hz/75 Hz/100 Hz/150Hz <br> DFT Filter: 0.05 Hz/0.15 Hz <br> AC Filter: 50 Hz/60Hz
CMRR>100dB
Patient leak current<10µA (220V-240V)
Frequency Response0.05Hz-150Hz (-3dB)
Sensitivity2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV (error: ±5%)
Anti-baseline DriftAutomatic
Time constant23.25
Noise level<15pVp-p
Paper speed12.5 mm/s, 25 mm/s, 50 mm/s
Recording modeThermal printing system
Paper specificationRoll 80mmx20M
Safety StandardIEC I/CF
Sample RateNormal: 1000sps/channel
Power SupplyAC: 100-240V, 50/60Hz, 30VA-100VA <br> DC: 14.8V/2200mAh, built-in lithium battery
