Technocare Infusion Pump (IP01)
loader-image
loader-image
loader-image
loader-image
loader-image

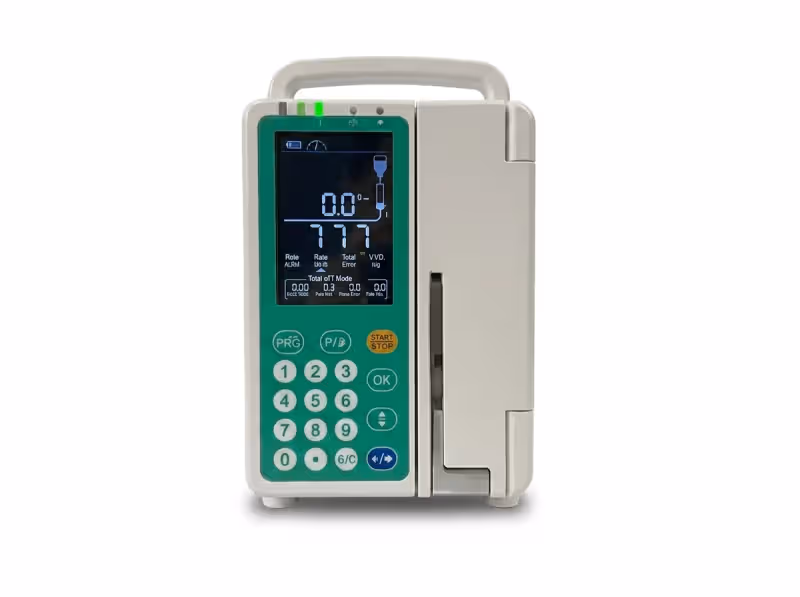

Technocare Infusion Pump (IP01)

₹20,000

₹20,035

0% Off

Exclusive of 12% GST

View Product Details

Free
Delivery

Hassle Free
Cancellations

7 Day Replacement
Policy

Check delivery date at your location

Purchase with Credit

Get Interest-free credit with easy and quick approval & hassle free payments

Share your thoughts on this product

Incorrect Prices? Missing Information? Delivery time too high?

Product Details

What is in the box

1 x Infusion Pump, 1 x User Manual

Product Description:

The IP01 Volumetric Infusion Pump is a finger-grip peristaltic pump designed for precise and reliable infusion in clinical settings. Featuring a 3.5-inch LCD screen, it provides clear visibility even from a distance of up to 5 meters. The device includes multiple infusion modes such as Rate, Time-Rate, Volume-Rate, Time-Drop, Volume-Drop, and Body-Weight Mode, making it versatile for various medical applications.

Its user-friendly numeric setting keys, one-button night mode, and anti-slip pump base support ensure ease of use and stability. The pump is compatible with multiple IV sets, allowing customization for different clinical needs. With an integrated drug library, air-in-line detection, and occlusion level monitoring, the IPA112 enhances patient safety. Additionally, the rechargeable lithium battery provides up to 4 hours of backup power, making it suitable for ambulatory and emergency use.

Key Features:

  • 3.5-inch LCD Screen for clear visibility within 5 meters.
  • Finger-tip peristaltic pump with downstream free-flow protection.
  • Multiple infusion modes including Rate, Time-Rate, Volume-Rate, and Body-Weight Mode.
  • Customizable IV set calibration for different brands.
  • Integrated Drug Library for clinical and customized drug use.
  • One-button night mode for patient comfort in low-light conditions.
  • Anti-slip pump base support for added stability.
  • Pull & Push hook design for easier door opening and closing.
  • Air-in-line detection and occlusion pressure monitoring for enhanced safety.
  • Rechargeable lithium battery provides up to 4 hours of continuous operation.
  • RS232 port for data transmission and external connections.
  • DC power compatibility for ambulance or mobile applications.

Sold by Quali5care & fulfilled byMedikabazaar

Country of OriginIndia
Model No.IP01
Infusion PrincipleFinger-grip Peristaltic Pump
IV Set CompatibilityOpen System, all brands of qualified PVC, TPE IV sets with external diameter of 3.8mm-4.2mm
Range of Flow Rate1-1200ml/h
Infusion ModeRate, Rate-Time, Volume-Rate, Volume, Drop-Volume, Drop-Time, Body Weight
Drug Library20 drug lists with drug code display
Purge/Bolus Rate1-1200ml/h, adjustable, step by 1ml/h
Single Bolus Volume1-100ml, adjustable, default 3ml
Time Preset00:01-99:59 (hours: minutes)
Volume Range0-9999ml
Drop Range1-400d/min, step by 1 drop
Accuracy±5%
Occlusion PressureHigh: 90 KPa-120 KPa - Middle: 60 KPa-90 KPa - Low: 30 KPa-60 KPa
Air-in-Line DetectionYes
Visible & Audible AlarmsAir-in-line, Downstream Occlusion, Door Open, VTBI Completion, Low Battery, Battery Exhausted, Low Temperature, Motor Abnormal, AC Connection, IV Set Detection, MPU Error, Battery Charging, Battery Exhausted
K.V.O Rate1ml/h, starts after VTBI completion or when drip use delay is up
Internal BatteryLithium Battery, 12V, lasts more than 4 hours with backup time
Power ConsumptionLow
Power SupplyAC: 100-240V with 50/60Hz - DC (for ambulance use): 12V
ClassificationClass I, Type CF
Dimension & Weight31cm × 13cm × 24cm
Optional FunctionAmbulance DC: 12V
