Name: Buy Silverline Biphasic Defibrillator at Best Price Online.
Brand: Silverline
SKU: MBPGLEESSTLAOB16858
Price: 112056 INR
Availability: InStock

Silverline Biphasic Defibrillator available only at Medikabazaar. Explore the widest collection of medicalequipments products from top brands. Shop Now!

Silverline meditech PVT. LTD.

Silverline

China

<html><body>The Silverline Biphasic Defibrillator with ECG and Printer (Model DF 301) is an advanced medical device engineered to deliver rapid and effective intervention during critical cardiac emergencies. Combining state-of-the-art biphasic technology with essential monitoring features, this defibrillator is designed to empower healthcare professionals with the tools needed for comprehensive cardiac care.Features:<ul><li>Input :150~270 VAC , 50Hz </li><li>Battery - 12V, 4.5Ah, Rechagable Battery Capacity 3 hours For monitor &amp; 70~100 Shocks on single Charge</li><li>Charging time less than 6 Seconds</li><li>Operation-by Front Panal Key board, Encoder &amp; ON-Off By front Panel Push Button</li><li>Display :7" Colour TFTwith ECG display and printer / Recorder</li><li>Input : 150 ~ 276 VAC, 50 Hz</li><li>Output : 17V at 4A</li><li>Power Consumption : 30 Watts (Max) in ECG mode</li><li>Operating Temp : -5°C to +50°C</li><li>Humidity : up to 95% non condensing</li><li>Rechargeable lithium battery with charger (11.1V)</li><li>LED Indicator : Low battery and battery charging</li></ul>Warranty :<ul><li>Main Unit : 1 Year</li><li>Not applicable for accessories</li></ul></body></html>

Defibrillator

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Biphasic Defibrillator is used to perform defibrillation for the purpose of turning abnormal ECG rhythm into normal rhythm.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Model Number</th> <td>DF 301</td> </tr> <tr> <th>Input</th> <td>150~270 VAC , 50 Hz</td> </tr> <tr> <th>Battery</th> <td>12 V, 4.5 Ah</td> </tr> <tr> <th>Operation</th> <td>By Front Panal Key Board, Encoder & ON-Off By Front Panel Push Button</td> </tr> <tr> <th>Display Size</th> <td>7 inch</td> </tr> <tr> <th>Input</th> <td>150 ~ 276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17 V At 4 A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG Mode</td> </tr> <tr> <th>Operating Temperature</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Humidity</th> <td>Up To 95% Non Condensing</td> </tr> <tr> <th>LED Indicator</th> <td>Low Battery And Battery Charging</td> </tr> <tr> <th>DEFIB:</th> <td></td> </tr> <tr> <th>Operating Mode</th> <td>Manual</td> </tr> <tr> <th>Energy</th> <td>2 To 200 Joules In 12 Steps [2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200 Joules]</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 8sec</td> </tr> <tr> <th>Synchronous</th> <td>Energy Delivery Begins Within</td> </tr> <tr> <th>Paddle Assembly</th> <td>Energy Paddle Assembly With</td> </tr> <tr> <th>Check Mode</th> <td>Manual Test Mode</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 seconds</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult Electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0-100%</td> </tr> <tr> <th>Accuracy</th> <td>70-100% ±2%, 50-69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10-250 bpm</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40ms (±1ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200 ? To 1 k?</td> </tr> <tr> <th>PRINTER:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55 mm Width, 20 Meters Length For 2 inch Printer</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Defib Mode</th> <td>Time, Date, Mode, Lead Name ,Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10-250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>Ready - When Not Taking Reading Measuring - When Taking Reading Error - If Reading Could Not Be Taken Due To Some Error While Measuring</td> </tr> </table> </div> </div>

Silverline Biphasic Defibrillator

Features

Model

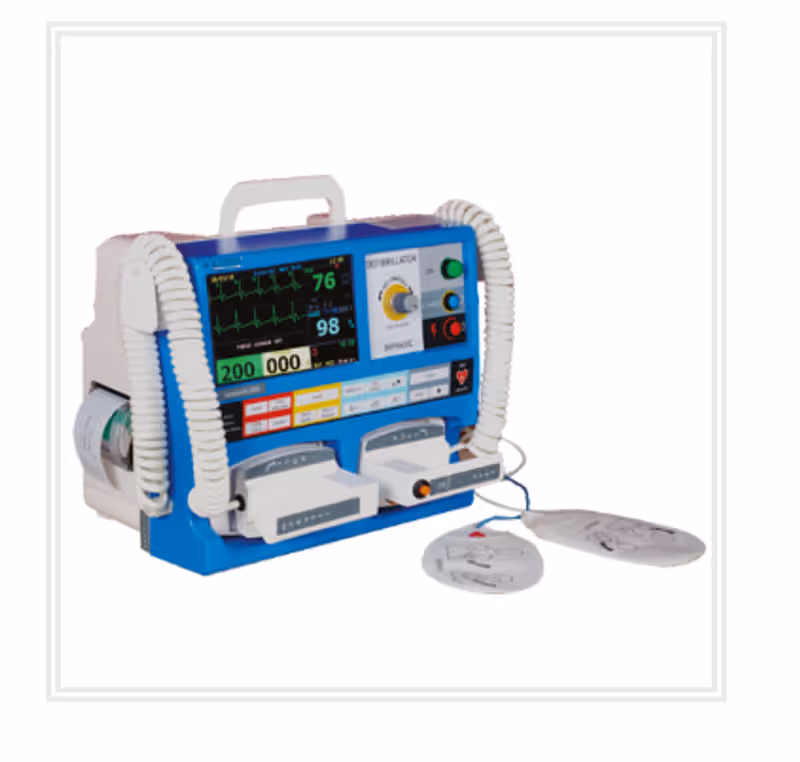

Silverline Biphasic Defibrillator - With ECG And Printer DF 301

<html><body>The Silverline Biphasic Defibrillator with ECG and Printer (Model DF 201) is an advanced and reliable medical device designed for rapid response in emergency situations. This biphasic defibrillator integrates cutting-edge technology with user-friendly features to provide timely and effective cardiac care. Equipped with essential monitoring capabilities, this defibrillator ensures a comprehensive approach to cardiac resuscitation.Features:<ul><li>Input :150~270 VAC , 50Hz </li><li>Battery - 12V, 4.5Ah, Rechagable Battery Capacity 3 hours For monitor &amp; 70~100 Shocks on single Charge</li><li>Charging time less than 6 Seconds</li><li>Operation-by Front Panal Key board, Encoder &amp; ON-Off By front Panel Push Button</li><li>Display :7" Colour TFTwith ECG display and printer / Recorder</li><li>Input : 150 ~ 276 VAC, 50 Hz</li><li>Output : 17V at 4A</li><li>Power Consumption : 30 Watts (Max) in ECG mode</li><li>Operating Temp : -5°C to +50°C</li><li>Humidity : up to 95% non condensing</li><li>Rechargeable lithium battery with charger (11.1V)</li><li>LED Indicator : Low battery and battery charging</li></ul>Warranty :<ul><li>Main Unit : 1 Year</li><li>Not applicable for accessories</li></ul></body></html>

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Biphasic Defibrillator is used to perform defibrillation for the purpose of turning abnormal ECG rhythm into normal rhythm.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Model Number</th> <td>DF 201</td> </tr> <tr> <th>Input</th> <td>150~270 VAC , 50Hz</td> </tr> <tr> <th>Battery</th> <td>12V, 4.5Ah</td> </tr> <tr> <th>Display Size</th> <td>7 inch</td> </tr> <tr> <th>Input</th> <td>150 ~ 276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17V At 4A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG Mode</td> </tr> <tr> <th>Operating Temp</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Printer:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55mm Width</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Difib Mode</th> <td>Time, Date, Mode, Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>Humidity Up To</th> <td>0.95</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 Seconds</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult Electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40ms (± 1ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200 ? To 1 k?</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0 ~ 100%</td> </tr> <tr> <th>Accuracy</th> <td>70 ~ 100% ±2%, 50 ~ 69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10 ~ 250 bpm</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10 ~ 250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>Ready - When Not Taking Reading</td> </tr> <tr> <th>Patient Type</th> <td>Adult, Paediatric, Neonate</td> </tr> </table> </div> </div>

Silverline Biphasic Defibrillator - With ECG DF 201

<html><body>The Silverline Biphasic Defibrillator with ECG and AED (Automated External Defibrillator) capabilities, designated as Model DF 401, represents a cutting-edge solution for immediate and effective response in critical cardiac emergencies. This versatile device seamlessly integrates biphasic technology, real-time ECG monitoring, and automated external defibrillation, making it a comprehensive and user-friendly tool for both healthcare professionals and first responders.Features:<ul><li>Input :150~270 VAC , 50Hz </li><li>Battery - 12V, 4.5Ah, Rechagable Battery Capacity 3 hours For monitor &amp; 70~100 Shocks on single Charge</li><li>Charging time less than 6 Seconds</li><li>Operation-by Front Panal Key board, Encoder &amp; ON-Off By front Panel Push Button</li><li>Display :7" Colour TFTwith ECG display and printer / Recorder</li><li>Input : 150 ~ 276 VAC, 50 Hz</li><li>Output : 17V at 4A</li><li>Power Consumption : 30 Watts (Max) in ECG mode</li><li>Operating Temp : -5°C to +50°C</li><li>Humidity : up to 95% non condensing</li><li>Rechargeable lithium battery with charger (11.1V)</li><li>LED Indicator : Low battery and battery charging</li></ul>Warranty :<ul><li>Main Unit : 1 Year</li><li>Not applicable for accessories</li></ul></body></html>

<h5>Product Overview:</h5> <div class='row'> <div class='col-md-12'> <ul class='mb-description-list'> <li> Silverline Automatic External Defibrillator is a portable electronic device that automatically diagnoses the life-threatening cardiac arrhythmias of ventricular fibrillation (VF) and pulseless ventricular tachycardia.</li></ul> <h5>Specifications: </h5> <table class='table table-bordered mb-specification-list'> <tr> <th>Product Code</th> <td>DF 401</td> </tr> <tr> <th>Input</th> <td>150-270 VAC , 50Hz</td> </tr> <tr> <th>Battery</th> <td>12V, 4.5 Ah, Rechargeable Battery Capacity 3 Hour For Monitor & 70-100 Shocks On Single Charge</td> </tr> <tr> <th>Display</th> <td>7 inch Colour TFT With ECG Display And Printer, Recorder</td> </tr> <tr> <th>Input</th> <td>150-276 VAC, 50 Hz</td> </tr> <tr> <th>Output</th> <td>17V At 4A</td> </tr> <tr> <th>Power Consumption</th> <td>30 Watts (Max) In ECG mode</td> </tr> <tr> <th>Operating Temperature</th> <td>-5°C To +50°C</td> </tr> <tr> <th>Humidity</th> <td>Up To 95% Non Condensing</td> </tr> <tr> <th>LED Indicator</th> <td>Low Battery And Battery Charging</td> </tr> <tr> <th>Additional General Features:</th> <td></td> </tr> <tr> <th>Operating Mode</th> <td>Manual & AED</td> </tr> <tr> <th>Paper Type Printer</th> <td>Thermal Paper</td> </tr> <tr> <th>ECG:</th> <td></td> </tr> <tr> <th>Lead Selection For ECG</th> <td>Lead I, II And III</td> </tr> <tr> <th>Sweep Speed For ECG</th> <td>12.5, 25, 50 mm/s</td> </tr> <tr> <th>Waveform 1</th> <td>ECG</td> </tr> <tr> <th>Waveform 2</th> <td>4 sec Delayed (Cascaded)</td> </tr> <tr> <th>Freeze Mode</th> <td>To Freeze Up To 4 Second ECG</td> </tr> <tr> <th>Frequency Response</th> <td>0.5Hz To 35Hz</td> </tr> <tr> <th>Patient Isolation</th> <td>Optical Isolation</td> </tr> <tr> <th>Gain Setting</th> <td>0.5, 1 And 2</td> </tr> <tr> <th>CMRR</th> <td>= 90 dB</td> </tr> <tr> <th>Digital Filter</th> <td>Digital Signal Processing For Good Quality Of ECG</td> </tr> <tr> <th>Dimension</th> <td>280x330x200 mm</td> </tr> <tr> <th>Weight</th> <td>6.5 Kg</td> </tr> <tr> <th>Printer:</th> <td></td> </tr> <tr> <th>Paper Type</th> <td>Thermal Paper 50/55 mm Width, 20 Meters Length For 2 inch Printer</td> </tr> <tr> <th>Event Printing</th> <td>Prints 5 Seconds Pre & Post ECG With Date, Time, Energy And Mode, Shock Status</td> </tr> <tr> <th>ECG In Defib Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Difib Mode</th> <td>Time, Date, Mode, Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>ECG In Monitor Mode</th> <td>Prints Last 10 sec ECG Through Paddle</td> </tr> <tr> <th>Print Annotates In Monitor Mode</th> <td>Time, Date, Selected Lead Name, Gain, Sweep Speed</td> </tr> <tr> <th>Manual Defib Check Mode</th> <td>Print The Status Of Shock, Energy, Date And Time</td> </tr> <tr> <th>AED Mode:</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Bi Phasic</td> </tr> <tr> <th>AEC Shock Series</th> <td>Energy Level From 150 To 200J</td> </tr> <tr> <th>Shock Command</th> <td>Front Panel Button, Shock</td> </tr> <tr> <th>Charging Time</th> <td>Less Than 7 sec</td> </tr> <tr> <th>Controls</th> <td>Analyze, Pause</td> </tr> <tr> <th>Defibrillation Electrode</th> <td>Malfunction, Self Adhesive, Adult electrodes</td> </tr> <tr> <th>Voice And Text Prompts</th> <td>Voice And Text Prompts To Guide User</td> </tr> <tr> <th>Pacemaker (Optional):</th> <td></td> </tr> <tr> <th>Waveform</th> <td>Monophasic</td> </tr> <tr> <th>Modes</th> <td>Demand Or Non Demand</td> </tr> <tr> <th>Amplitude</th> <td>From 10 mA To 150 mA (Resolution Of 10 mA)</td> </tr> <tr> <th>Pulse Width</th> <td>40 ms (± 1 ms)</td> </tr> <tr> <th>Frequency</th> <td>From 20 ppm To 250 ppm (Increments Of 1 ppm)</td> </tr> <tr> <th>Refectory Period</th> <td>340 ms (From 30 To 80 ppm), 240 ms (From 90 To 180 ppm)</td> </tr> <tr> <th>Maximum Output Voltage</th> <td>150 V</td> </tr> <tr> <th>Impedance Range</th> <td>200? To 1k?</td> </tr> <tr> <th>SpO2 (Optional):</th> <td></td> </tr> <tr> <th>Range</th> <td>0-100%</td> </tr> <tr> <th>Accuracy</th> <td>70-100% ±2%, 50-69% ±3%</td> </tr> <tr> <th>Pulse Rate</th> <td>Displayed When PR Is Deselected</td> </tr> <tr> <th>Pulse Beep</th> <td>Step Less Volume Control</td> </tr> <tr> <th>PR Range</th> <td>10-250 bpm</td> </tr> <tr> <th>NIBP (Optional):</th> <td></td> </tr> <tr> <th>Method</th> <td>Oscillometric</td> </tr> <tr> <th>NIBP Interval</th> <td>User Selectable - 3 min To 120 min</td> </tr> <tr> <th>Modes</th> <td>Manual, Auto</td> </tr> <tr> <th>Cuff Deflation</th> <td>Automatic</td> </tr> <tr> <th>Safety Features</th> <td>Automatic Deflation If Cuff Pressure Exceeds 280 mmHg</td> </tr> <tr> <th>Range</th> <td>10-250 mmHg</td> </tr> <tr> <th>NIBP Status</th> <td>?Ready? - When Not Taking Reading, ?Measuring? - When Taking Reading, ?Error? - If Reading Could Not Be Taken Due To Some Error While Measuring</td> </tr> <tr> <th>Patient Type</th> <td>Adult, Paediatric, Neonate</td> </tr> </table> </div> </div>

Silverline Biphasic Defibrillator - With ECG And Printer DF 301
