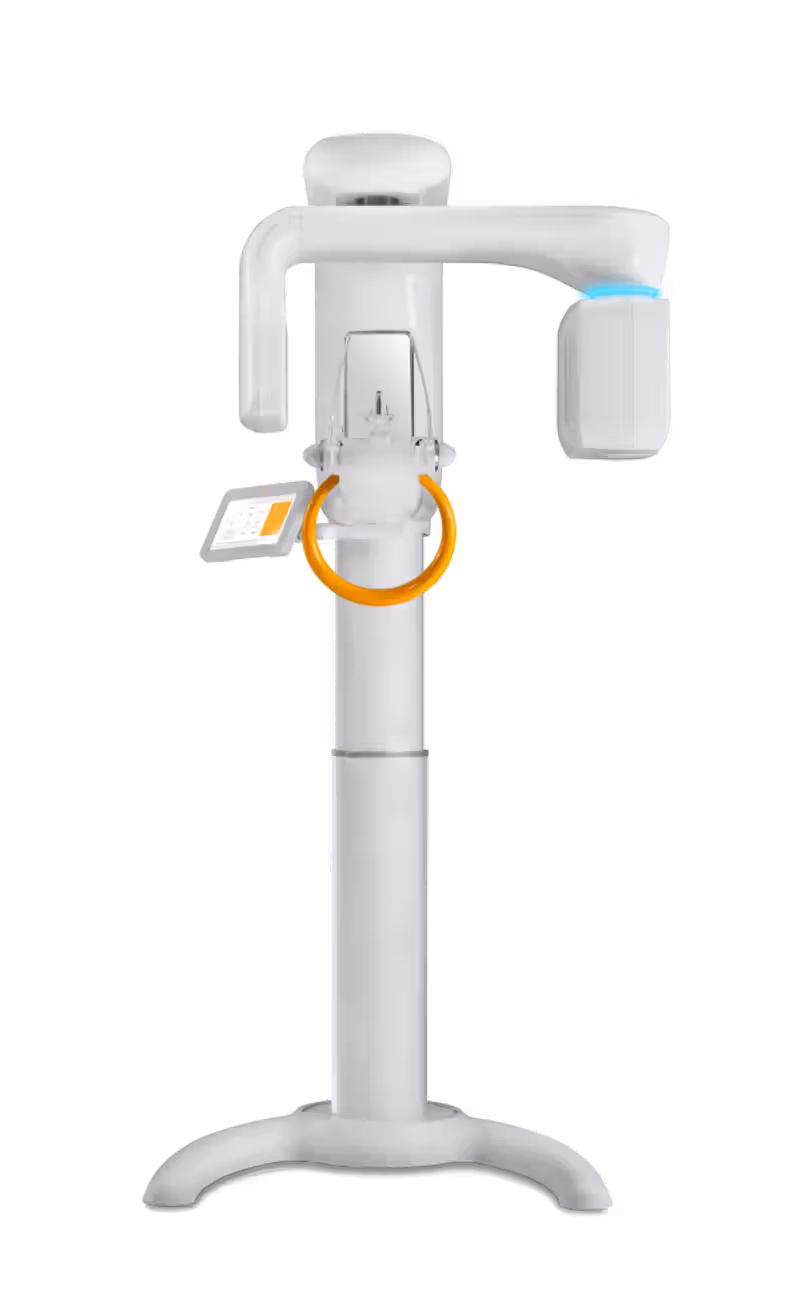

Rayscan Alpha Plus CBCT X-Ray Machine - 13x10 Without Ceph

WARRANTY:5Years

DESCRIPTION:

The Rayscan Alpha Plus CBCT X-Ray Machine is an innovative and advanced imaging system designed to deliver high-quality 3D diagnostic results while maintaining a focus on patient safety and operational efficiency. Recognized globally with the Red Dot Design Award, this system is equipped with cutting-edge features that optimize imaging for dental clinics and diagnostic centers.

From its real-time Field of View (FOV) selection to its ability to reduce X-ray exposure, the Rayscan Alpha Plus is designed to cater to the needs of modern dental practices and diagnostic centers. Its combination of CBCT, panoramic, and cephalometric imaging capabilities ensures versatile and accurate diagnostic outcomes.

Key Features:

1. Red Dot Design Award Winner:

   • A globally recognized design award that highlights the system's exceptional innovation and functionality in the dental imaging field.

2. Real-Time FOV Selection with Visible X-Ray Guide:

   • Allows users to easily adjust the Field of View (FOV) based on the area of treatment, with a visible X-ray guide ensuring precision while minimizing unnecessary radiation exposure.

3. Ideal FOV Sizes for 3D Diagnosis:

   • The system offers customizable FOV sizes, including 13x10 cm and 16x10 cm, making it perfect for comprehensive dental diagnostics.

4. Patient Positioning:

   • Offers both standard and wheelchair-accessible positioning for diverse patient needs.

5. Wireless Remote Control:

   • First-time in India, a non-directional wireless remote allows the operator to control machine movements, including adjusting up/down positioning for exposure readiness.

6. LCD Touch Panel:

   • Easy-to-use LCD touch panel that enables quick selection of imaging modes for a more efficient workflow.

7. Low Dose in CT Mode:

   • Innovative technology ensures a low X-ray dose during CT imaging, reducing radiation exposure to the patient while maintaining excellent image quality.

8. Fast Scan Times:

   • Pano Scan: 13.9 seconds
   • CBCT Scan: 4.9 to 14 seconds (depending on the FOV and voxel size)
   • Paediatric CBCT Diagnosis: 4.9 seconds for quick imaging of children

9. MAR (Metal Artefact Reduction):

   • The system features Metal Artefact Reduction (MAR) technology, ensuring that metal objects in the imaging field do not distort the quality of the final image.

10. Wide Range of Imaging Modes:

    • Pano Capture Modes: Standard, Segment, Bitewing, Orthogonal, Right, Left, Front, TMJ & Sinus imaging.
    • Ceph Capture Modes: LAT, LAT-Wide, PA/AP, Carpus, SMV.
    • One Shot Ceph: Enables fast image acquisition to reduce patient movement and distortion.

11. Onsite Cephalometric Upgrade:

    • The system is designed to be upgradeable to Cephalometric imaging at any time directly on the customer's site.

12. CMOS Flat Panel Detector:

    • Offers superior imaging capabilities with 16-bit grey scale for high-definition images.
    • Wide Voxel Size Range: From 0.07 mm to 0.4 mm, suitable for a variety of diagnostic needs.
    • Free FOV: FOV sizes from 4x3 cm to 16x10 cm, adaptable for different dental procedures.

13. X-Ray Tube/Generator:

    • Manufacturer: Toshiba (Japan)
    • Tube Voltage: 60-90 kVp
    • Tube Current: 4-17 mA
    • Focal Spot: 0.5 mm, ensuring sharp image quality.

14. Advanced 3D Imaging Software:

    • The On Demand RAYSCAN α+ software delivers fast, high-quality imaging with 6-second reconstruction time for a 16 cm diameter area.
    • Endodontic Specialty: A voxel size of 70 μm and a minimum FOV of 4x3 cm tailored for endodontic diagnostics.

15. Minimized Patient Exposure:

    • The system's 0.3-second exposure for One Shot Ceph and its low-dose capabilities contribute to reduced radiation exposure, prioritizing patient safety.

16. Panoramic Imaging:

    • Provides high-definition panoramic images for accurate diagnostics of dental conditions.

Technical Specifications:

• Type: Panoramic, Cephalometric, Cone Beam CT
• Patient Positioning: Standing (wheelchair accessible)
• Focal Spot: 0.5 mm
• Tube Voltage: 60-90 kVp
• Tube Current: 4-17 mA
• Field of View (FOV): 4x3 cm to 13x10 cm / 4x3 cm to 16x10 cm Free FOV
• Grey Scale: 16-bit
• Scan Time:

  • Panoramic Scan: 13.9 seconds
  • CBCT Scan: 4.9 to 14 seconds
  • Paediatric CBCT: 4.9 seconds

The Rayscan Alpha Plus CBCT X-Ray Machine represents the future of dental imaging, offering a seamless combination of 3D, panoramic, and cephalometric imaging all in one system. With its innovative features like low-dose technology, high-quality imaging, quick scan times, and patient safety enhancements, this system is an ideal solution for dental clinics and diagnostic centers seeking to provide optimal care with cutting-edge equipment.
